Voidless Vacuum Reflow Oven

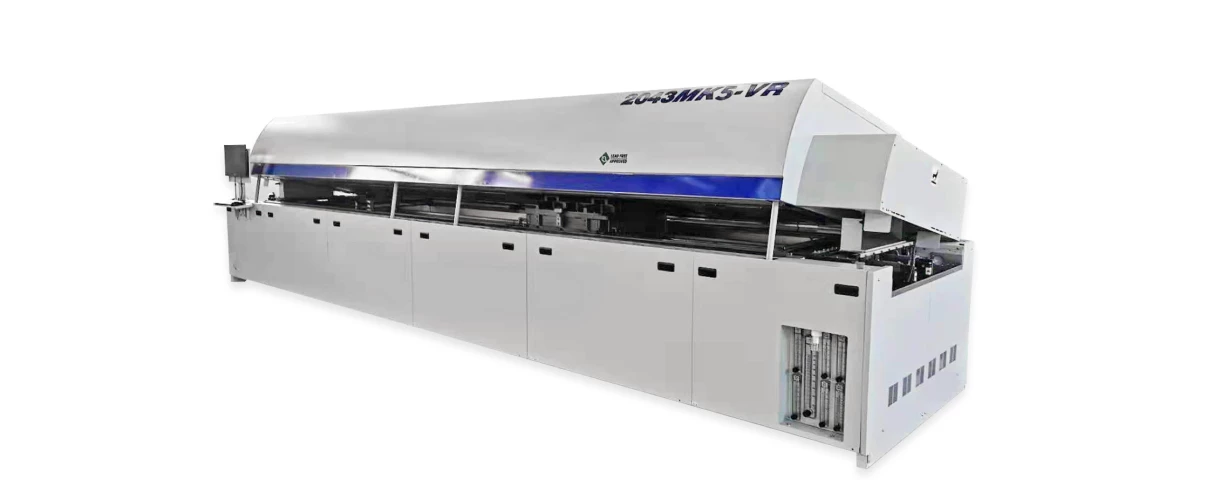

The 2043MK5-VR is the ultimate high volume production vacuum reflow oven with 10 heated convection zones and 3 IR zones and 430cm (169”) in total heated length. A large vacuum chamber accommodates boards up to 500mm in length, and 3 cool zones provide cooling rates >3°C/sec – even on large boards.

Technische Daten

Oven Length 680cm
Process Gas Options Air, Nitrogen, Formic Acid, forming gas
Heated Zones Convection: 10 Top / 10 Bottom IR: 3 Top
Heated Length (Convection/Total) 327 cm / 430 cm
Cool Zones 3 Top (Bottom Option)
Max Working Temperature (Convection / IR) Standard: 350°C / 400°C, Option: 400°C / 480°C
Min Vacuum Standard:10 Torr Option: <10 Torr
Max Board Size 500mm (L) x 450mm (W) x 29mm (H)
Cleanroom Option Down to Class 1000
