HM 520 MF

HM 520 MF

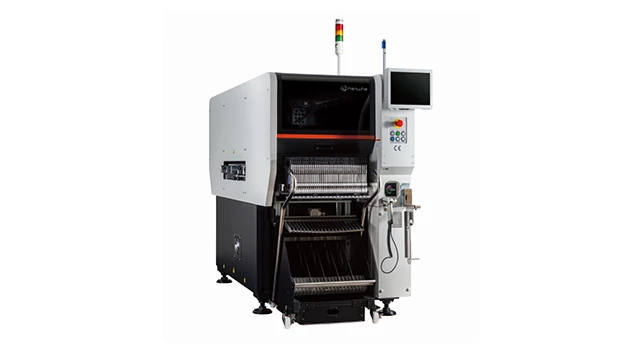

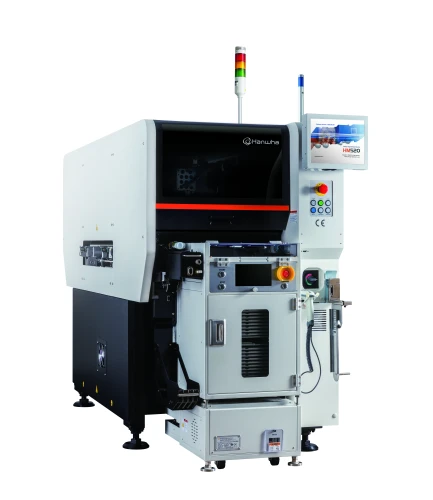

Cutting-edge Modular Mounter


 Actual productivity is highest among machines of the same class
· Optimized to high quality production

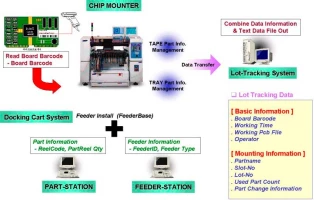

· Unmanned, non-stop and zero defect using the Smart Factory S/W Solution

Technische Daten

Alignment Fix Camera
Number of Spindles 6 spindles x 2 Gantry (Piano Type)
 Placement Speed  60,000 CPH
Placement Accuracy ±40 μm @ Cpk ≥ 1.0 (Chip) / ±30 μm @ Cpk ≥ 1.0 (IC)
Component Range 0402 ~ □ 55 mm


Multi Function

6 Spindle Head (Piano Type)
Applicable to the placement of a wide range of components from chips of standard components to odd-shape components.

High Reliability

Applies Height Sensor
Picks up a component using the height sensor without pering separate teaching and automatically corrects the difference in the placement height due to PCB warping.

Flexible Production

Applicable Range of Components
Possible to place components from 0402 to a maximum of 55mm components, with a height of a maximum of 15mm.

Easy Operation

Convenient Nozzle Management
The fiducial camera recognizes the bar of the ANC and nozzles to ensure optimum nozzle rearrangement on the ANC block, as well as ANC block change by one touch
