Voidless Vacuum Reflow Oven

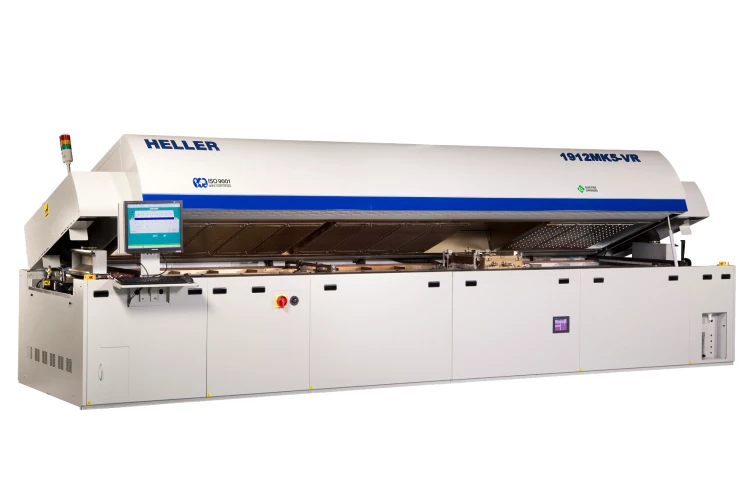

The 1912MK5-VR contains 3 infrared heated zones and 11 convection zones, giving the flexibility to subdivide a profile into smaller segments and allowing for more refined “profile sculpting” – a must for demanding Lead Free Applications. Perfect for high volume manufacturing with 382cm (150”) in heated length, it provides low maintenance requirements and cost of ownership.

Technische Daten

Oven Length 590cm
Process Gas Options Air, Nitrogen, Formic Acid, forming gas
Heated Zones Convection: 11 Top / 11 Bottom IR: 3 Top
Heated Length (Convection/Total) 290 cm / 382 cm
Cool Zones 3 Top (Bottom Option)
Max Working Temperature (Convection / IR) Standard: 350°C / 400°C, Option: 400°C / 480°C
Min Vacuum Standard:10 Torr Option: < 10 Torr
Max Board Size 350mm (L) x 350mm (W) x 29mm (H)
Cleanroom Option Down to Class 1000
