Beschreibung

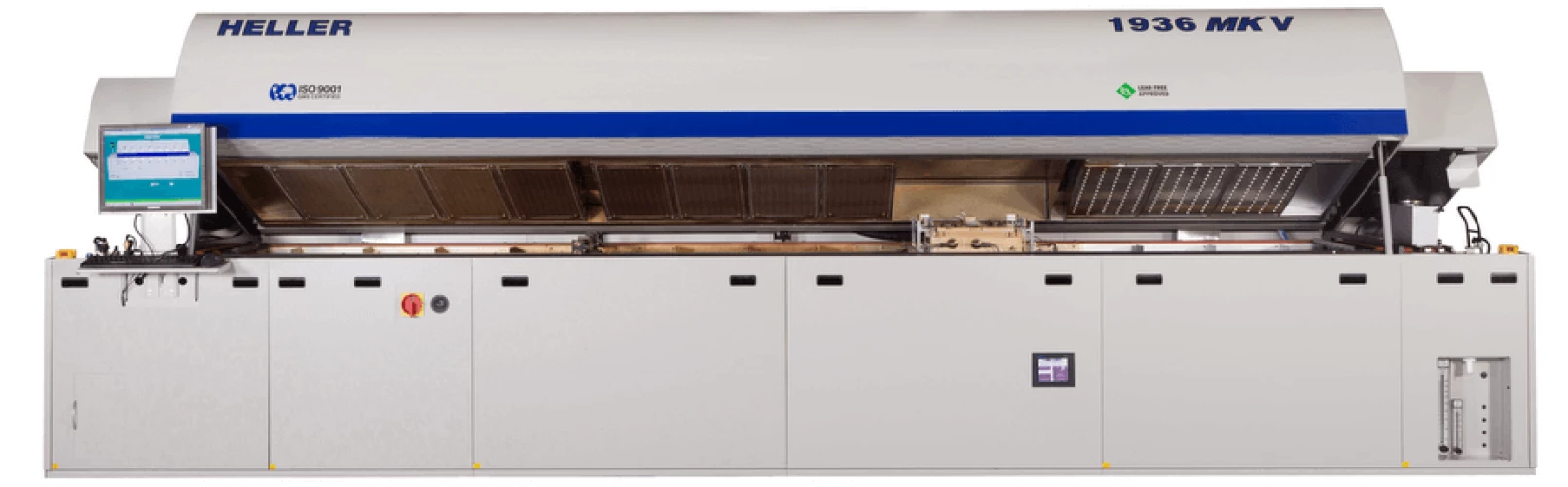

The 1936MK5-VR delivers high levels of repeatability with the lowest delta T’s. 8 convection zones (12” in length), and 3 separate infrared heated zones provide consistent performance for high volume requirements with low maintenance requirements and cost of ownership.
Technische Daten
| Oven Length | 589cm |
| Process Gas Options | Air, Nitrogen, Formic Acid, forming gas |
| Heated Zones | Convection: 8 Top / 8 Bottom IR: 3 Top |
| Cool Zones | 3 Top (Bottom Option) |
| Max Working Temperature (Convection / IR) | Standard: 350°C / 400°C, Option: 400°C / 480°C |
| Min Vacuum | Standard:10 Torr Option: <10 Torr |
| Max Board Size | 350mm (L) x 350mm (W) x 29mm (H) |
| Cleanroom Option | Down to Class 1000 |
